Nomogram model using serum Club cell secretory protein 16 to predict prognosis and acute exacerbation in patients with idiopathic pulmonary fibrosis

European Journal of Medical Research volume 30, Article number: 20 (2025) Cite this article

Abstract

Background

Idiopathic pulmonary fibrosis (IPF) is a progressive fibrotic lung disease with poor prognosis, nomogram model for its prognosis and acute exacerbation was constructed.

Methods

Two hundred and sixty eight patients with IPF were grouped with different severity according to fibrosis area, serum Club cell secretory protein 16(CC16) was compared between these groups. All patients were randomly divided into training and testing sets. COX regression and LASSO algorithm were used to screen featured characteristics. Then nomogram models were constructed, ROC curve, calibration curve and decision curve analysis(DCA) were conducted to evaluate the performance of model. Expression of CC16 were detected in fibrotic human lung tissues, bronchoalveolar lavage fluid (BALF) and Bleomycin(BLM)-treated mouse lung tissues and serums.

Results

Serum CC16 gradually increased with the severity of fibrosis, and was especially high in AE-IPF group. CC16 and diffusion capacity for carbon monoxide (DLCO) were screened as characteristic variables to construct nomogram model for IPF prognosis. The survival was significantly lower in high-risk group scored by the model. The area under ROC curves(AUCs) for 1-year and 2-year mortality prediction were 0.866 and 0.916, respectively. This model performed better than gender-age-physiology (GAP) index for predicting 2-year and 3-year mortality. Another nomogram model for acute exacerbation of IPF based on CC16, Krebs von den Lungen-6(KL-6) and DLCO was developed, the AUC was 0.815. Expression of CC16 obviously up-regulated in fibrotic lung tissues, BALF and BLM-treated mice lung tissues and serums.

Conclusions

The nomogram model based on CC16 performed good predictive ability for prognosis and acute exacerbation of IPF.

Background

Idiopathic pulmonary fibrosis (IPF) is a chronic, progressive and fatal fibrotic interstitial lung disease with unknown etiology and few treatment options, and the median survival time after diagnosis is 3–5 years [1]. The major pathogenesis of IPF involves aberrant injury and repair of alveolar epithelial cells (AEC) which can initiate fibroblast proliferation, migration, differentiation into myofibroblast and promote extracellular matrix deposition in lung [2]. The diagnosis of this deadly disease mainly relies on imaging tests, such as high-resolution computed tomography (HRCT) and biopsy [3]. Early prediction of the prognosis and acute exacerbation of IPF patients is particularly important for guiding timely antifibrotic therapy which can help to improve the prognosis of the patients.

Club cell secretory protein 16 (CC16) also known as uteroglobin, a member of the secretoglobin family and 16kDa homodimeric protein, is encoded by the SCGB1A1 gene, and can be detected in airways, sputum, circulation and urine [4]. In human, CC16 is secreted predominantly by Club cells and non-ciliated bronchiolar epithelial cells, which is located in the distal bronchiolar epithelium [5]. In mice, 50–70% of total airway epithelial cells are non-ciliated cells and > 95% of non-ciliated cells are Club cells [6]. For its large area distribution in lung, CC16 may have various physiological functions to maintain normal lung function and altered CC16 may be correlated with multiple pulmonary diseases.

Previous studies have demonstrated that CC16 plays important role in anti-oxidative stress, anti-chemotaxis and anti-inflammatory, and possesses an immunomodulatory properties [7]. Normal level of CC16 has been proved to maintain normal lung function and lung structure. Expression of CC16 differs among different pulmonary diseases. Decreased CC16 has been regarded as a potential biomarker in chronic obstructive pulmonary diseases(COPD) [8], asthma [9], obstructive sleep apnea (OSA) [10], but it is up-regulated in acute respiratory distress syndrome (ARDS) [11], COVID-19 [12] and silicosis [13, 14]. Our previous proteomics study revealed that protein expression of CC16 was significantly elevated in lung tissues of IPF patients [15]. Previous studies reported that CC16 levels from serum, bronchoalveolar lavage fluid (BALF) and sputum were significantly increased in IPF compared with non-IPF interstitial lung diseases (ILD) including chronic hypersensitivity pneumonitis (CHP) and connective tissue diseases associated ILD (CTD-ILD) [16, 17]. And serum CC16 could help to distinguish IPF from non-IPF ILD, demonstrating that changes of CC16 may participate in pathogenesis of IPF [17]. According to previous researches, increased CC16 may be involved in the pathogenesis of IPF and may also serve as a potential biomarker for IPF.

Several studies have focused on building clinical models to identify IPF and AE-IPF and to predict the prognosis. A nomogram model included gender, DLCO and CTD to predict the mortality risk of IPF patients in a Singaporean cohort [18]. An AE-IPF nomogram prediction model based on history of occupational exposure, diabetes mellitus (DM), essential hypertension (EH) and DLCO was developed to predict the occurrence of AE-IPF [19]. In previous studies, PaO2/FiO2, CRP, Ang-2, HMGB1 and CC16 were used to construct a predictive nomogram model that can enhance ARDS diagnosis [20]. Our research aimed to construct a prognostic and acute exacerbation prediction model for IPF patients based on serum CC16, so as to timely identify IPF patients with high-risk of death and acute exacerbation in clinical practice.

Methods

Study population

A total of 268 patients who were diagnosed with IPF between 2017 and 2020 at Nanjing Drum Tower Hospital were enrolled in this study. Serums of 48 normal persons from the medical examination department of the hospital were collected as control group. And BALF from 23 IPF patients and 14 patients with benign lung nodule as control group were collected to examine the level of CC16. Six human lung tissues of IPF and six normal healthy lung tissues were obtained from the Department of Lung Transplantation, Wuxi People's Hospital. Written informed consent was obtained from the participants, and the study was officially approved by the Ethics Committee of Nanjing Drum Tower Hospital of Medical School of Nanjing University (No. 31/93, 84/93, 29/01).

Definition of groups

Two hundred and sixty eight patients were classified as mild (n = 39), moderate (n = 91), severe (n = 138) group assessed by lung fibrosis area in HRCT. 57 out of 268 patients were identified into AE-IPF group, and 211 patients were divided into IPF group. 43 out of 211 patients (about 20.4%) took pirfenidone and 9 patients (about 4.3%) took nintedanib in IPF group. In AE-IPF group, 6 patients (about 10.5%) took pirfenidone and 1 patient (about 1.8%) took nintedanib. All diagnosis of IPF and extent of fibrosis were according to the official criteria [3, 21,22,23]. Mild patients present mainly subpleural reticulation, moderate patients present mainly subpleural honeycombing, severe patients present extensive lung honeycomb on HRCT, and the diagnosis of AE-IPF was made strictly according to official criteria.

Enzyme-linked immunosorbent assay (ELISA)

The concentrations of CC16 in serum and BALF were measured via sandwich-type ELISA following the manufacturer’s instructions. Human serum was diluted fivefold, human BALF was diluted 500 fold and mouse serum was diluted tenfold for ELISA test. ELISA kit for human CC16 was purchased from R&D systems (Catalog Number DUGB00), mouse CC16 ELISA kit purchased from Novus biologicals (Catalog Number NPB2-75184). Human serum KL-6 was detected by serum KL-6 quantitative detection kit purchased from Japan Sekisui Medical Company (Product name Sialylated carbonhydrate antigen KL-6 Kit, Catalog Number 202138-005) with MODULAR P800 automatic biochemical analyzer manufactured by Roche, Switzerland.

BLM-induced pulmonary fibrosis in mice

Six to eight-week-old male SPF C57BL/6 mice were randomly divided into control group and treatment group, 50 µl of 0.9% saline and 50 µl of 5 mg/kg BLM were intratracheally injected, respectively. All mice were sacrificed at 7, 14 and 21 days after treatment, mice blood and lungs were collected for subsequent experiments. All mice were fully anesthetized with isoflurane before injection and sacrifice. The induction concentration of isoflurane was about 4% and the maintain concentration was about 1.5%. All mice were treated according to the protocols approved by the Ethics Committee for Animal Research of Medical School of Nanjing University.

Western Blot

Whole protein samples were separated on SDS‐PAGE gels and transferred to PVDF membranes, then it was blocked with 5% nonfat milk and incubated with primary antibody at room temperature for 4 h. Incubated with HRP‐conjugated secondary antibody for one hour at room temperature, and protein expression was detected using electrochemical luminescence method. Antibody against CC16 were purchased from Santa Cruz Biotechnology (USA). Primary antibodies against β-actin and Collagen 1α were purchased from Abcam (United Kingdom).

Construction and validation of CC16-based prognostic signature

Two hundred and eleven patients diagnosed with IPF were randomly partitioned into distinct training set (n = 140) and testing set (n = 71) at a ratio of 2:1. In the training set, 13 factors (gender, age, smoker, CC16, SpO2, PaO2, oxygenation index (OI), forced vital capacity (FVC), forced vital capacity in the first second (FEV1), DLCO-SB, white blood cell (WBC), C-reactive protein (CRP), and lactic dehydrogenase (LDH) were included in analysis. To establish a model for predicting overall survival (OS) in IPF, we conducted a univariate COX regression analysis based on the factors mentioned above. Variables who met the criteria of P values less than 0.1 in COX analysis were selected for least absolute shrinkage and selection operator (LASSO)-penalized Cox regression analysis using R package “glmnet”. LASSO regression was performed using a tenfold cross validation. Based on the results of the LASSO regression, risk scores were calculated using the following formula: risk score = variable 1 * coefficient 1 + variable 2 * coefficient 2 + …… + variable n * coefficient n + constant. Patients in the training set were separated as low- and high-risk groups based on the median risk score. The differences in OS between the two groups were compared with a Kaplan–Meier (KM) survival analysis. Moreover, time-dependent ROC curves were constructed with R package “timeROC”, and AUCs were calculated. The established prognostic model was visualized through nomograms. By using the R package “rms”, the calibration curves were plotted to validate the accuracy of the nomogram. The model’s clinical utility was evaluated based on the decision curve analysis (DCA). Moreover, we compared our model with gender-age-physiology (GAP) index. The prognostic model was further examined in our testing set. Each patient was given a risk score according to the model and separated into low- and high-risk group. The Kaplan–Meier plotter, timeROC curves and AUCs, and DCA were used to assess the model performance.

Construction of CC16-based diagnostic model for AE-IPF

The ROC curves and AUCs of CC16, KL-6 and DLCO-SB were analyzed in IPF patients with acute exacerbation. Then a predictive model for acute exacerbation of IPF was constructed based on above three factors using univariable and multivariable logistic regression analyses. The model was displayed as a nomogram, and calibration curves and DCA analysis were performed to evaluate its performance.

Statistical analysis

Comparison of quantitative data between different groups were performed by Kruskal–Wallis or Mann–Whitney U test according to data distribution. Comparison of qualitative data between different groups were conducted by Chi-square test. Quantitative data was shown as median (IQR) and qualitative data was presented as numbers (percentages) in Table. All statistical analyses were performed by IBM SPSS Statistics (Version 26.0) and R (version 4.1.2). P value less than 0.05 were considered statistically significant difference.

Results

Correlation between CC16 concentration and clinical characteristics

The clinical characteristics of the 268 patients of IPF and control group were shown in Table 1. Serum CC16 was increased in IPF group (Fig. 1A), and it was significantly higher in AE-IPF group than IPF group (Fig. 1B). Serum CC16 was gradually elevated with severity of pulmonary fibrosis, and they were especially higher in severe and AE-IPF group (Fig. 1C, D). Heatmap indicated that heavy lung fibrosis mainly located at area of high CC16 (Fig. 1E). Correlation analysis showed that FVC, FEV1, DLCO-SB were negatively related with level of serum CC16 (Fig. 1F). Serum CC16 was significantly elevated in patients with age > 60 years (Fig. 1G), but it did not differ significantly between different gender and smoking group (Fig. 1H, I). These results indicated that CC16 was significantly elevated in IPF and correlated with the poor lung function and severity of pulmonary fibrosis.

Table 1 Clinical characteristics of different groups
Full size table
Fig. 1
figure 1

Correlation analysis between CC16 and clinical characteristics. A Comparison of serum CC16 between control and IPF group. B Serum CC16 comparison between control, IPF and AE-IPF group. C, D Serum CC16 comparison between different severity group. E Heatmap visualized the relationship of CC16 expression and clinical variables. F Correlation analysis between CC16 and clinical characteristics, the color indicated the Pearson’s correlation. G CC16 was significantly elevated in patients with age > 60. H CC16 showed similar level between male and female patients. I CC16 showed similar level between non-smokers and smokers. *P < 0.05, **P < 0.01, ***P < 0.001

Full size image

Prognostic implication of CC16

The minimum P value when CC16 difference was most significant in IPF patients was used to divide patients into CC16 Low group (n = 84) and High group (n = 127). Then Kaplan–Meier survival analysis showed that overall survival of High group was significantly lower than Low group (Fig. 2A). But the survival had no significant difference between Low and High group in patients with AE-IPF (Fig. 2B). Combining the minimum P value of CC16 with clinical characteristics, Kaplan–Meier analysis showed that overall survival of IPF mainly influenced by level of CC16 rather than age, gender and smoke status (Fig. 2C–E). From these results, level of serum CC16 was closely related to the prognosis of IPF patients.

Fig. 2
figure 2

Kaplan–Meier survival curves for CC16 in IPF and AE-IPF patients. A Patients with IPF were divided into CC16 low group and CC16 high group according to the minimum P-value between the two groups, the optimal cut-off value was 67.4175 ng/ml, then Kaplan–Meier survival analysis was used to analyze the survival difference between the two groups. B Kaplan–Meier survival analysis was conducted between low CC16 and high CC16 group in patients with AE-IPF, the optimal cut-off value was 129.655 ng/ml. C The CC16 low group and high group were grouped again according to age, and the survival difference among the groups was analyzed by Kaplan–Meier analysis. D The survival differences were compared between different CC16 level and different gender. E Kaplan–Meier survival analysis between different CC16 level and different smoking status

Full size image

Prognostic model construction based on CC16

Two hundred and eleven patients of IPF were randomly divided into training set (n = 140) and testing set (n = 71). Through univariate Cox regression analysis, 11 among the 13 factors met the criteria of p < 0.1 except for gender and PaO2 (Fig. 3A). The 11 factors were enrolled to conduct LASSO-penalized Cox regression analyses. By setting the penalty parameter (λ) to 1 standard error above the minimum (1se), a model containing CC16 and DLCO-SB was generated (Fig. 3B, C). The risk score was calculated as following: risk score = CC16 * 0.00554228382563167 + DLCO-SB (%) * (− 0.0160421088126014). Kaplan–Meier analysis revealed that patients’ OS times in low-risk group were significantly longer than in high-risk group (p < 0.001, Fig. 3D). The specificity and sensitivity of the prognostic signature were also evaluated using time-dependent ROC analysis. For 1-year and 2-year survival, the AUC from ROC curve was 0.866 and 0.916, respectively (Fig. 3E). All the AUC were above 0.8 from 0.5 to 2.5 years, indicating excellent predictive efficacy (Fig. 3F). The predictive model for 1-year, 2-year and 3-year survival probability was visualized via a nomogram (Fig. 3G).

Fig. 3
figure 3

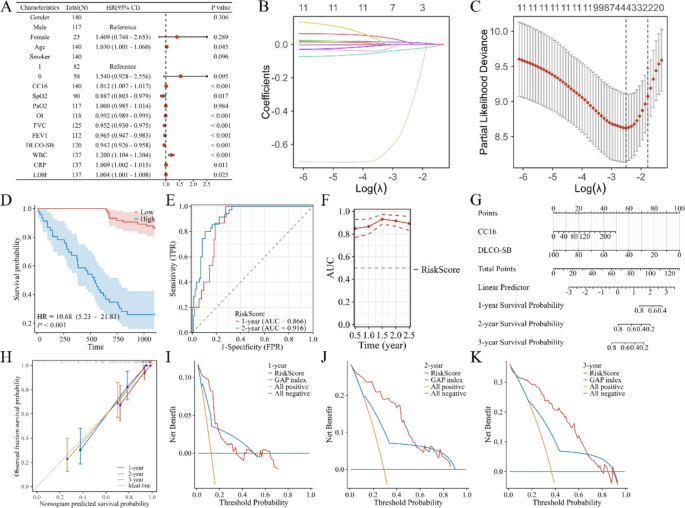

Construction of the CC16-based prognostic signature. A Univariate Cox regression analysis of CC16 expression and clinical characteristics in the training set. B LASSO regression analysis, an upper abscissa indicated how many variables in this model have non-zero coefficients, with each curve representing a change in the coefficient of each variable. C Ten-fold cross-validation for parameter selection in the LASSO model. D In the training set, patients at high-risk have shorter OS than those at low-risk, based on a Kaplan–Meier curve (P < 0.001). E Time-dependent ROC curves of 1-year and 2-year. F Based on the risk score, AUCs for 0.5- to 2.5-year ROC curves were calculated. G A nomogram for prediction of one-, two-, and three-year survival probability in the training set. H Graphs showing the calibration curves for the nomogram prediction of survival rates at 1, 2, and 3 years. I 1-year DCA curve comparison between this nomogram model and GAP index. J 2-year DCA curve comparison. K 3-year DCA curve comparison

Full size image

Model evaluation

The calibration curve of the model in Fig. 3H showed high agreement between the predicted survival probability and observed probability. DCA was performed to measure the clinical utility of the nomogram and compare it with GAP index, a widely-used scoring system predicting the mortality risk of IPF patients. Fig. 3I–K showed that the net benefits of the nomogram were superior to GAP index especially in predicting 2-year and 3-year prognosis. The performance of this CC16-based model was also examined in the testing set. IPF patients were also categorized into low- and high-risk groups based on the risk score calculated by the model. Kaplan–Meier curve revealed that the OS rate of the high-risk group was significantly lower than that of the low-risk group (p = 0.002, Fig. 4A). The AUC from ROC curve for 1-year and 2-year prognosis were 0.754 and 0.759, respectively (Fig. 4B). The AUC of time-dependent ROC curves were between 0.7 and 0.8 (Fig. 4C). DCA analysis also showed superior clinical utility than GAP index in predicting 2-year and 3-year prognosis in testing set (Fig. 4D–F). These results suggested that the model performed well in predicting the prognosis of patients with IPF and possessed potential clinical utility.

Fig. 4
figure 4

Validation of CC16-based prognostic signature in the testing set. A Kaplan–Meier survival analysis in the training set indicated that patients at high-risk have shorter OS than those at low-risk (P = 0.002). B Time-dependent ROC curves were used to evaluate the performance of the model in predicting 1-year and 2-year survival probability. C Time-dependent AUCs from 0.5- to 2.5-years were calculated. D–F 1-, 2-, and 3-year DCA curves between this model and GAP index were conducted to evaluate the probability of clinical utility

Full size image

Predictive model construction for acute exacerbation of IPF

KL-6 has been reported to be a good diagnostic and prognostic predictor for IPF patients [24]. In present study, ROC curves were applied to estimate the predictive value of CC16 and KL-6 for IPF. The AUCs of CC16 and KL-6 were 0.941 and 0.976, respectively (Fig. 5A). As DLCO-SB can reflect the severity of pulmonary fibrosis, it was enrolled to predict acute exacerbation of IPF patients. The AUCs of CC16, KL-6 and DLCO-SB were 0.698, 0.760 and 0.750 in AE-IPF patients, respectively (Fig. 5B). Thus, we tried to combine three factors in a logistic model in order to improve the model’s efficacy. The combined model was plotted with a nomogram (Fig. 5C), and the predictive value of the model were calculated by ROC curve, the AUC of this model was 0.815 (Fig. 5D). Calibration curve for the model showed high agreement between the predicted probability and the actual probability (Fig. 5E). The clinical utility of the nomogram was examined by DCA, the model showed a satisfactory clinical net benefit (Fig. 5F). These results indicated that the model combing serum CC16, KL-6 and DLCO-SB could help to identify the risk of acute exacerbation.

Fig. 5
figure 5

Construction of CC16-based identification model for acute exacerbation. A ROC curve was applied to calculate the diagnostic value of CC16 and KL-6 for patients with IPF. B The diagnostic value of CC16, KL-6 and DLCO-SB to distinguish AE-IPF and IPF was calculated by ROC curves. C A nomogram using CC16, KL-6 and DLCO-SB for the risk of AE-IPF occurrence was constructed. D ROC curve and AUC of the model to verify the diagnostic value. E Calibration curves of the nomogram was generated for the cohort. F DCA for the nomogram was applied to evaluate the probability of clinical utility

Full size image

Increased CC16 expression in fibrotic lung tissues, BALF and serum

To further verify the relationship between CC16 and pulmonary fibrosis. Compared with that in normal lung tissues, CC16 protein expression was upregulated in IPF lung tissues, as detected by Western blot (Fig. 6A–C). CC16 in human BALF was significantly increased in IPF group compared with control group (Fig. 6D). In addition, Serum CC16 in BLM treated mouse also increased at 14th day (Fig. 6E). The protein expression of CC16 increased in fibrotic mouse lung tissues on day 7(Fig. 6F–H), day 14 (Fig. 6I–K) and day 21 (Fig. 6L–N). These results demonstrated that expression of CC16 was elevated in fibrotic lung tissues, BALF and serum and may be involved in pathogenesis of IPF.

Fig. 6
figure 6

Increased expression of CC16 in fibrotic lung tissues, BALF and serum. A–C Protein expression of CC16 and Collagen 1α in human lung tissues were detected by Western blot and greyscale values were calculated via Image J. D CC16 of human BALF were detected by ELISA in IPF and control group. E Serum CC16 of BLM treated mice were detected by ELISA at day 7, 14, 21. F–H Expression of CC16 and Collagen 1α were detected in BLM treated lung tissues on day 7. I–K CC16 and Collagen 1α were detected on day 14. L–N CC16 and Collagen 1α were detected on day 21 (*P < 0.05; **P < 0.005)

Full size image

Discussion

In current study, a prognostic prediction model for IPF was constructed based on serum CC16, and the model showed good performance to predict prognosis of IPF and possessed potential clinical utility. The predictive model based on serum CC16, serum KL-6 and DLCO-SB also performed well at predicting the risk of acute exacerbation for patients with IPF. To our knowledge, this study may be the first to build predictive models for prognosis and acute exacerbation of IPF based on serum CC16. Moreover, level of serum CC16 was closely related to severity of pulmonary fibrosis in IPF patients, serum CC16 gradually increased with severity of lung fibrosis and it was especially higher in AE-IPF. Expression of CC16 significantly up-regulated in human fibrotic lung tissues and BALF, it also increased in BLM-induced mouse fibrotic lung tissues and serum. The increased CC16 level may be involved in pathogenesis of IPF.

In recent years, many studies have reported that ILD-GAP model was a simple and reliable clinical index for prognosis prediction of ILD patients, and it was usually selected as a comparison in some studies [25, 26]. The results of DCA suggested that our model performed better than GAP index to predict 2-year and 3-year mortality risk for IPF patients. And serum KL-6 was a recognized biomarker for prediction of severity, acute exacerbation, poor outcomes for ILD patients, and serum KL-6 can already be routinely tested in some hospitals [24]. Serum CC16, KL-6 and DLCO-SB were used to develop a predictive model for occurrence of acute exacerbation. Results of ROC, calibration curve and DCA indicated that this model also performed well in predicting the risk of acute exacerbation.

Elevated CC16 has been detected in lung tissues of IPF and BLM induced mice pulmonary fibrosis, and it had been regarded as an indicator of lung injury in previous researches. IPF is recognized as a disease characterized by lung epithelial injury, but the relationship between CC16 and IPF has rarely been reported. Previous research reported that epithelial cells respond to injury by secreting innate immunity proteins such as secretory leukocyte protease inhibitor (SLPI), elafin, CC16 and β-defensin-2, and among these proteins only CC16 was up-regulated in IPF [16]. In basis experiment, increased CC16 was detected not only in Club cells but also in AEC of patients with IPF [32]. Three studies have reported increased CC16 level in serum, BALF and sputum in patients with IPF, similar with our results [16, 27, 28]. Serum CC16 was significantly increased after acute exposure to smoke, whereas it returned to baseline level after 10 days of smoke exposure, which indicated that serum CC16 may be a potential marker for acute airway injury [29]. Increased CC16 was detected in peripheral blood after silica exposure, and it is sensitive than respiratory symptoms, chest computerized tomography scan and lung function test, which indicated that serum CC16 is a sensitive marker in early lung injury [30]. Recent research revealed that serum CC16 was obviously higher in ARDS patients than non-ARDS patients, and increased serum CC16 has been considered as a biomarker for ARDS diagnosis and prognosis [11, 31]. Up-regulated CC16 also has been regarded as a potential biomarker for COVID-19 associated lung injury [12] and elevated CC16 level may be useful to predict outcomes in patients with COVID-19 [32]. These studies suggested that CC16 is closely related to lung injury and IPF, and CC16 can reflect the level of lung injury earlier than clinical symptoms, lung function test or imaging.

The mechanisms of CC16 involved in pulmonary fibrosis are still unknown. Previous research indicated that CC16 knockout mice will sporadically develop focal pulmonary fibrosis and these mice exhibited high morbidity and mortality. And CC16 knockout mice were extraordinarily sensitive to BLM and an extremely low dose of BLM will lead pulmonary fibrosis. And supplementation with CC16 can prevent BLM induced pulmonary fibrosis by suppressing pro-fibrotic inflammatory T-helper 2 cytokines and TGF-β [33]. Recent research discovered that knockout of CC16 in mice led to an accelerated lung aging phenotype with exaggerated pulmonary inflammation with activated NF-κB, and CC16-/- mice developed more small airway fibrosis than wild type mice, the increased inflammatory factor including IL-10, CCL-2 and CCL5 [34]. Administration of Antiflammin-1 (AF-1), a derivative of CC16 and a synthetic nonapeptide, has been shown to have a protective effect against BLM-induced mouse pulmonary fibrosis by reducing the level of inflammatory factors such as tumor necrosis factor-alpha (TNF-α) and interleukin-1 beta (IL-1β) [35]. From these previous studies, CC16 may regulate inflammation to involve in pulmonary fibrosis, but more accurate studies are needed.

Acute exacerbation is a threatening disease status for IPF patients, and patients with acute exacerbation have a high risk of death within short term. Recently, several studies have reported some scoring systems based on patient clinical characteristics to predict prognosis of patients with AE-IPF and risk of acute exacerbation. Sakamoto S et al. constructed a model named “PCR” by using PaO2/FiO2 ratio (P), CRP (C), and diffuse HRCT pattern (radiological) (R) to predict 3-month mortality in patients with AE-IPF [36]. Another predictive score model using radiographic honeycombing (H), age (A) and serum LDH level (L) was developed to discriminate the risk of acute exacerbation in patients with idiopathic interstitial pneumonias, the discriminated C-index of HAL score system was 0.62 in exploratory cohort, and the C-index was 0.67 in a validation cohort [37]. The indexes were significantly lower than the AUC in our model (0.851). Compared with the above studies, our model may perform better in predicting the risk of acute exacerbation.

However, CC16 is not always up-regulated in respiratory diseases. In lung cancer, decreased serum CC16 at baseline associated with elevated mortality risk [38]. In COPD, low circulating CC16 levels in childhood predicted accelerated lung function decline in adults and may be associated with the development of COPD [39] and decreased serum CC16 have been used as a biomarker for COPD diagnosis and assessment [8]. Many evidences suggested that CC16 may play an anti-inflammatory and anti-oxidant role to protect lung from obstructive lung diseases [40]. Decreased CC16 in bronchial epithelial cells was proved to be associated with smoking-related lung function decline [41]. Under these circumstances, normal level of CC16 may play an important role in maintaining normal lung function. And we hypothesized that CC16 is up-regulated when lung parenchymal injury occurs, whereas CC16 secretion will decrease when Club cells and epithelial cells are damaged during airway injury.

This study has obvious limitations, the lack of external validation cohort makes the external extension performance of the model undetermined. And more clinical laboratory variables and symptoms should be included in the study for variable screening. We have also conducted some basic researches to explore the mechanisms of CC16 involved in pathogenesis of IPF. However, the underlying mechanisms are still unclear, and more basic researches are needed in the future.

Conclusions

This study constructed clinical model based on serum CC16 to predict the prognosis of patients with IPF and the risk of acute exacerbation. Current nomogram models could help clinicians identify patients with high risk of death and acute exacerbation in time, and guide clinicians to carry out effective treatments as early as possible to improve patients’ prognosis and reduce mortality.

Data availability

No datasets were generated or analysed during the current study.

Abbreviations

IPF:

Idiopathic pulmonary fibrosis

CC16:

Club cell secretory protein 16

AE-IPF:

Acute exacerbation of IPF

HRCT:

High-resolution computed tomography

ROC:

Receiver-operating characteristic curve

DCA:

Decision curve analysis

KL-6:

Krebs von den Lungen-6

DLCO-SB:

Diffusion capacity for carbon monoxide in single breath

FVC:

Forced vital capacity

GAP:

Gender, age and physiology

COPD:

Chronic obstructive pulmonary diseases

OSA:

Obstructive sleep apnea

ARDS:

Acute respiratory distress syndrome

BALF:

Bronchoalveolar lavage fluid

CHP:

Chronic hypersensitivity pneumonitis

CTD:

Connective tissue diseases
